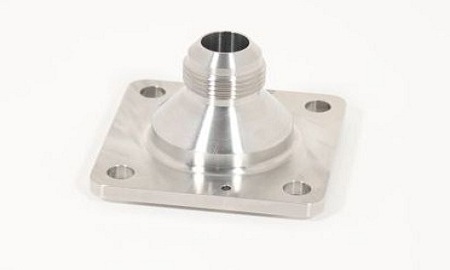

Adapter Fitting

Stainless Steel Aerospace FittingPart Name: Adapter Fitting

Customer:  Tier 1 Aerospace

Location: USA

Description:  Fluid application

Industry: Aerospace (Commercial)

Materials: 304L Cres Condition A, AMS 5513 Stainless Steel

Quality Details & Requirements:

  • General tolerance +/- .005”
  • Mil Spec thread form

Quantity:  10

Part Size & Dimensions:

  • Height = 2.25”
  • Width = 3”
  • Length= 3”

Application(s) Used:

  • CNC Mill/Turn
  • Deep profiling with small boring bar
  • OD Threading

Engineering & Software Requirements:

  • Pro E CAD file
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes & Requirements:

  • Passivate IAW AMS-QQ-P-35 Type V11

Project Milestones:

  • Customer need to meet a tight deadline on quick turn parts.  After parts were machined GTI Precision Components personnel drove parts to secondary processing vendor for same day turn around service.  After secondary process was completed, parts were inspected, packed and shipped overnight to customer’s facility on time.

Window Frame



Window FramePart Name: Window Frame

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • 2 precision .500” bores per part, diameter +.0005”/-.0005”
  • Coaxial  .002” tolerance

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 11”
  • Width = 3.5”
  • Length = 11”

Application(s) Used:

  • 5-Axis Positioning  CNC Machining on OP1
  • 2-Axis  and 3-Axis CNC Machining on OP2
  • High-Speed Machining
  • 3-Axis contouring of window seal seat and IML Surface

Cycle Time(s):

  •  OP1 = 1.5 hours
  • OP2  = 45 minutes
  • Total = 2.25 hours

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

Project Milestones:

  • Part had a lot of material to remove in deep pockets and profiles.  Tools with 5X length to diameter ratios required in many places.
  • Dowel pin locations placed in the interior of the part on OP1 were used to locate the part on a grid plate of another machine for OP 2 position.

Longeron

Longeron - Aerospace StructurePart Name: Longeron

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .005” Profile tolerance on IML Surface
  • .005″ Flatness on back of part in free state

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 2.92”
  • Width = .75”
  • Length = 14”

Application(s) Used:

  • 3-Axis machining of IML Surface
  • High-Speed Machining of pockets

Cycle Time(s):  OP1 = 27:35 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Project Milestones:

  • Positioned stock on two dovetail fixtures.  Used high speed machining (18K RPM) to rapidly remove material.  Small tool diameters reduced tool pressure on thin floor/wall part improving surface finish and reducing hand finishing.

Intercoastals

IntercostalsPart Name: Intercostal

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .005” Profile tolerance on IML Surface
  • .625” diameter bore, +.0005/-.0005” tolerance, .005” True Positioning  tolerance

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 4.01”
  • Width = .810”
  • Length = 13.58”

Application(s) Used:

  • 5-Axis Simultaneous machining of IML Surface
  • High-Speed Machining
  • Precision Boring

Cycle Time(s):  OP1 = 34 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Project Milestones:

  • Positioned stock on two dovetail fixtures.  Used high speed machining (18K RPM) to rapidly remove material.  Small tool diameters reduced tool pressure on thin floor/wall part improving surface finish and reducing hand finishing.




Longeron, AFT

Aft Longeron

Part Name: Longeron, AFT

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .005” Profile tolerance on IML Surface

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 3.5”
  • Width = .800”
  • Length = 10.5”

Application(s) Used:

  • 5-Axis Simultaneous machining of IML Surface
  • 5-Axis Positioning of pilot holes
  • High-Speed Machining

Cycle Time(s):  OP1 = 25 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Project Milestones:

  • Positioned stock on two dovetail fixtures.  Used high speed machining (18K RPM) to rapidly remove material.  Small tool diameters reduced tool pressure on thin floor/wall part improving surface finish and reducing hand finishing.

Hoist Link

Hoist LinkCustomer:  Aerospace/Commercial OEM

Part Name: Hoist Link

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure, Door component

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • Four precision same size bores:  .0007” total tolerance
  • Coaxial bores,  .002” tolerance

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 5.55”
  • Width = 5.28”
  • Length = 8.5”

Application(s) Used:

  • 5-Axis Positioning, CNC Machining OP1
  • High-Speed Machining
  • Precision Boring

Cycle Time(s):  OP1 = 22 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1
  • Semi Gloss Enamel White Top coat, BMS10-11, TYP 2, BAC 702

Project Milestones:

  • 1 precision bore, 4X per part required a dedicated boring head for this P/N.  Following a LEAN strategy the boring tools we set up and maintained for this part exclusively thus reducing machining variants and eliminating scrap each time the part was run.

Frame

Recon Frame

Part Name: Frame

Customer:  Aerospace Tier 1

Location: US

Description: Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .010” General profile tolerance on IML surface
  • 3 precision bores per part, diameter +.0005”/-.0005”

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 5.5”
  • Width = 2.4”
  • Length = 16”

Application(s) Used:

  • 5-Axis Positioning, CNC Machining
  • High-Speed Machining
  • 3-Axis contouring of 2 direction curved 3D surfaces

Cycle Time(s):  OP1 = 1.5 hours

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

Project Milestones:

  • Machined part in one operation on dovetail fixtures
  • Maintained set-up of 3 separate boring heads for precision bores under LEAN initiative
  • Implemented tool extension for long reach .098” pilot holes drilled into center web




Motor Housing

Motor Housing

Part Name: Motor Housing

Customer:  Aerospace Tier 2

Location: US

Materials: 6061-T6511 Aluminum

Description:  Housing for electrical motor controlling environmental systems on aircraft

Industry: Aerospace (Commercial)

Quality Details & Requirements:

  • Bearing seats: 2 precision inline bores: +.0004”/-.0” diameter tolerance
  • .001” coaxial bores
  • ID .001” total tolerance
  • .0005” tolerance for alignment pins between housing halves

Quantity:  80 sets with yearly repeat orders

Part Size & Dimensions:

  • Diameter = 6”
  • Length = 11”

Application(s) Used:

  • 5-Axis Positioning  CNC Machining
  • Mill/Turn
  • Sinker EDM of recessed slots in large half
  • Precision Boring
  • Slotting of fins using customer form saw
  • Minor assembly -  instillation of heli-coils after plating
  • Thread Milling

Cycle Time(s):

Large Half

  • Milling and Turning, Protoypes: 5.5 hours
  • Milling and Turning, Production: 2.25 hours
  •  Sinker EDM: 1 hour

Small Half

  • Milling and Turning, Protoypes: 3.75 hours
  • Milling and Turning, Production: 1.5 hours

Engineering & Software Requirements:

  • Customer supplied STEP file
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Chormate Conversion (Iridite) Per MIL-C-5541 E Class 1A, light brown

 Project Milestones:

  • Multi-year project.  Work with customer from single piece prototypes to production.
  • Worked with customer on several revisions rounds
  • Original prototypes used micro tapered end mill which proved to be extremely time consuming and highly unreliable due to tool breakage.  Developed process for machining fins using custom designed form slitting saw…dramatically reducing cycle times and improving part quality.
  • GTI had to change to a different secondary processor on second production round due to poor vendor performance.  Customer was very pleased with second vendor’s performance on finish and color.  Precision diameters unaffected by chemical process with new vendor.




Fitting, Lower Corner



Lower Right Corner Fitting - AerostructurePart Name: Fitting, Lower Corner

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .005” General profile tolerance on IML surface
  • .05” thick webs
  • .01” true positioning of holes

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 12”
  • Width = 1.5”
  • Length = 12”

Application(s) Used:

  • 5-Axis Simultaneous machining of OML Surfaces
  • High-Speed Machining
  • 3-Axis contouring of 2 direction curved 3D surfaces

Cycle Time(s):  OP1 = 46 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Project Milestones:

  • Part machined using picture frame method on dovetail fixtures in one operation.  Extensive 3-Axis contouring at 18,000+ rpm was required to produce thin walls with a high quality finish, reducing deburring and hand finishing of all surfaces.

Hoist Fitting

Hoist Fitting

Part Name: Hoist Fitting

 Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • .01” profile tolerance
  • .005” profile tolerance on OML & IML contours

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 2.52”
  • Width = 2.0”
  • Length = 2.55”

Application(s) Used:

  • 5-Axis Positioning  CNC Machining
  • 3-axis contouring of two direction curved OML & IML contours
  • Thread milling

Cycle Time(s):

  •  OP1 = 20 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Project Milestones:

  • Thread milled .875-14F-3B Thread
  • Applied proven machining process to a family of 6 part numbers




Bracket

Hinge Bracket

Part Name: Bracket

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • 1 precision bores: +.0005”/-.0” diameter tolerance
  • .001” coaxial bores

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 1.81”
  • Width = 1.0”
  • Length = 3.66”

Application(s) Used:

  • 5-Axis Positioning , CNC Machining
  • Precision Boring

Cycle Time(s):  OP1 = 15 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

 Aerospace/Commercial OEM

Location: US

Part Name/Description: Door hinge used in Aft section of a Single Isle Commercial aircraft,90- 110 seats

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • Line boring of bearing seats, +0/ -.0005” tolerance
  • .010” profile tolerance on all

Quantity:  55 Total ship sets under LTA, 1 part per ship set

Part Size & Dimensions:

  • Height = 3”
  • Width = 6”
  • Length = 10”

Application(s) Used:

  • 5-Axis CNC Machining (machined in 1 operation)
  • High-Speed Machining
  • Drilling
  • Trochoidal Milling

Cycle Time(s):

  • 1st Part in Run = 2 hours
  • Last Part in Run = 1 hour 15 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawings
  • TopSolid/TopCAM

Project Milestones:

  • Developted a process for deep hole drilling and boring to maintain alignment of bushing seats.   Max tolerance for  concentricity was +/- .0002”.  This was obtained by using three stage machining process that allow consistant repeatability over the entire run of 55 pieces.
  • Applied drilling process to 8 other hinges in a family of parts.

Upper Corner Fitting

Upper Corner Fitting

Part Name: Fitting Upper Corner

Customer:  Aerospace Tier 1

Location: US

Description:  Aerostructure

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • 3 precision bores: +.0004”/-.0” diameter tolerance
  • .001” coaxial bores

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 6”
  • Width = 2.5”
  • Length = 10.5”

Application(s) Used:

  • 5-Axis Simultaneous machining of OML Surface and pockets
  • High-Speed Machining
  • Precision Boring

Cycle Time(s): OP1 = 48 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Ultrasonic Inspection, MIL-STD-2154, CL A
  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1

Project Milestones:

  • 3 precision bores per part required the purchase of special tooling to properly machine each size.  Following a LEAN strategy the boring tools we set up and maintained for these parts exclusively thus reducing machining variants and eliminating scrap each time the part was run.

Lift Mechanism Arm

Lift Mechanism ArmPart Name: Lift Arm Mechanism

Customer:  Aerospace Tier 1

Location: US

Description: Cargo Door component Commercial aircraft, 75-95 seat

Industry: Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • Various diameter precision bores: +.0005”/-.0005” tolerance
  • .002” coaxial bores

Quantity:  55 Total ship sets, 1 part per ship set

Part Size & Dimensions:

  • Height = 1.81”
  • Width = 5.28”
  • Length = 15.73”

Application(s) Used:

  • 5-Axis Positioning, CNC Machining OP1
  • 2-Axis CNC machining OP2
  • High-Speed Machining
  • Precision Boring
  • Deep slot milling

Cycle Time(s):

  •  OP1 = 48 minutes
  •  OP1 = 15 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawing
  • TopSolid/TopCAM for CNC programming

Special Processes:

  • Liquid Penetrant Inspect, ASTM-E-1417, TYP-1
  • Non-Chromic Anodize, MIL-A-8625, TYP-1C
  • Epoxy primer, BMS10-11, TYP 1
  • Semi Gloss Enamel White Top coat, BMS10-11, TYP 2, BAC 702

Project Milestones:

  • 6 precision bores per part required the purchase of special tooling to properly machine each size.  Following a LEAN strategy the boring tools we set up and maintained for these parts exclusively thus reducing machining variants and eliminating scrap each time the part was run.




Door Hinge

Aerospace Door HingePart Name/Description: Door Hinge

Customer: Aerospace/Commercial OEM

Location: US

Part Name/Description: Door hinge used in Aft section of a Single Isle Commercial aircraft,90- 110 seats

Industry:  Aerospace (Commercial)

Materials: 7050-T7451 Aluminum

Quality Details & Requirements:

  • Line boring of bearing seats, +0/ -.0005” tolerance
  • .010” profile tolerance on all

Quantity:  55 Total ship sets under LTA, 1 part per ship set

Part Size & Dimensions:

  • Height = 3”
  • Width = 6”
  • Length = 10”

Application(s) Used:

Cycle Time(s):

  • 1st Part in Run = 2 hours
  • Last Part in Run = 1 hour 15 minutes

Engineering & Software Requirements:

  • NX CAD File
  • PDF Drawings
  • TopSolid/TopCAM

Project Milestones:

  • Developted a process for deep hole drilling and boring to maintain alignment of bushing seats.   Max tolerance for  concentricity was +/- .0002”.  This was obtained by using three stage machining process that allow consistant repeatability over the entire run of 55 pieces.
  • Applied drilling process to 8 other hinges in a family of parts.
